Name |
Date |
Unit |
|
Modle |

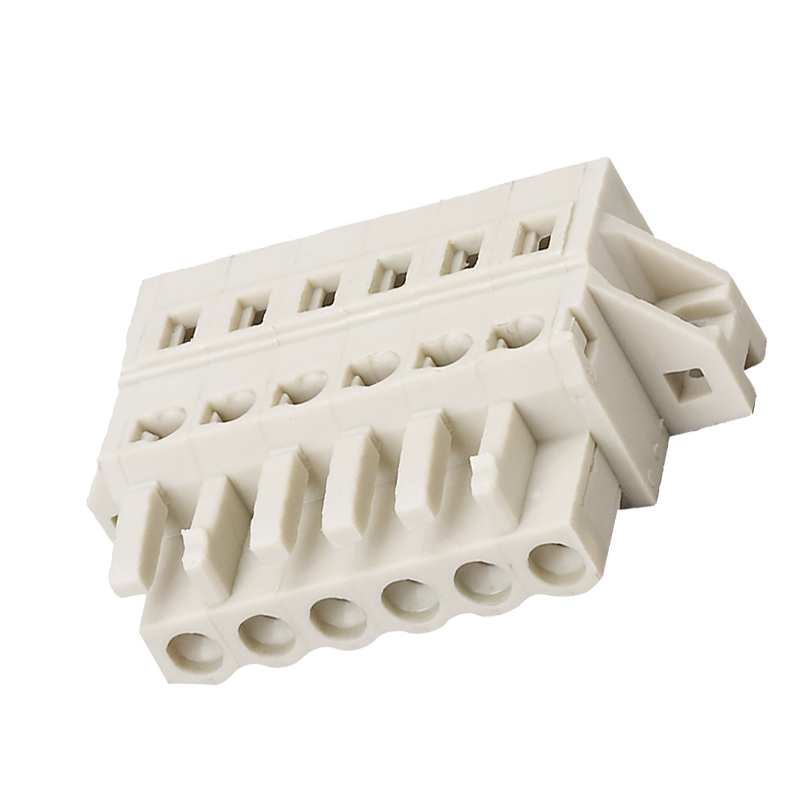

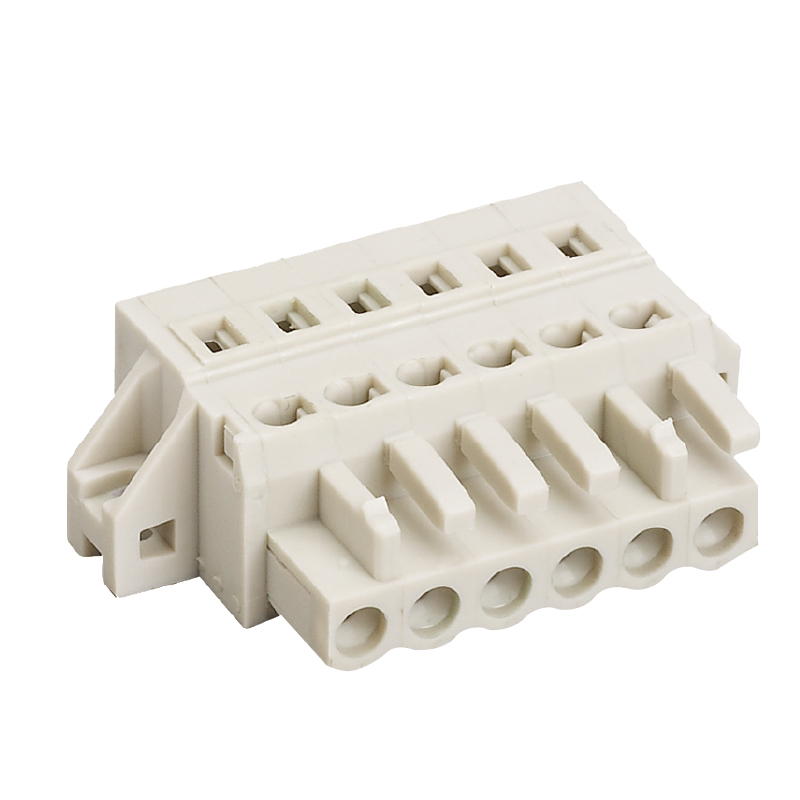

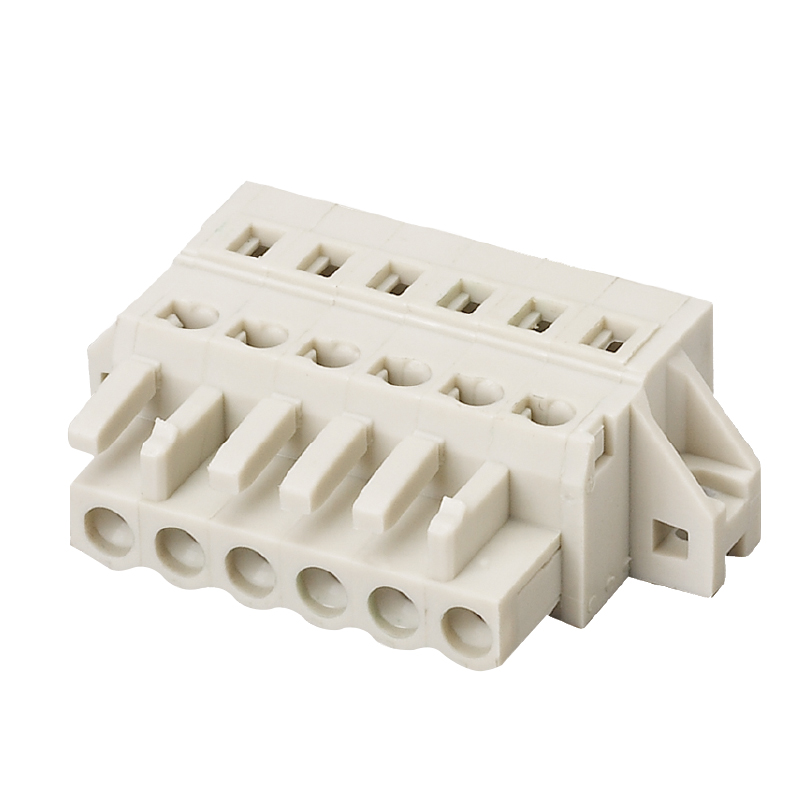

MA2.5CG/HF5.0 |
|
|
Pitch |
5.00 |
mm |
|
Digit |
2-24 |
|
|
Length |
L=（N-1)*P+1.5 |
mm |
|
Width |
3.80 |
mm |
|
Height |
26.45 |
mm |
|
Insulation material group |
Ⅰ |
|
|
Complied standards① |
IEC |
|
|
Rated surge voltage（Ⅲ/3）① |
2.5 |
KV |
|
Rated surge voltage（Ⅲ/2）① |
2.5 |
KV |
|
Rated surge voltage（Ⅱ/2）① |
2.5 |
KV |
|
Rated voltage（Ⅲ/3）① |
250 |
V |
|
Rated voltage（Ⅲ/2）① |
250 |
V |
|
Rated voltage（Ⅱ/2）① |
250 |
V |
|
Nominal current① |
12/2.5 |
A |
|
Complied standards② |
UL |
|
|
Rated voltage② |
250 |
V |
|
Nominal current② |
12 |
A |
|
Min.connection capacity for solid wire |
0.5/28 |
mm2/AWG |
|
Max.connection capacity for solid wire |
4.0/12 |
mm2/AWG |
|
Min.connection capacity for strand wire |
0.5/28 |
mm2/AWG |
|
Max.connection capacity for strand wire |
2.5/12 |
mm2/AWG |
|
Line direciton |
Parallel to the insertion direction |
|
|
Strip length |
8-9 |
mm |
|
Insulation material |
PA66 |
|
|
Inflammability class |
UL94 V-0 |
|
|
Conductive piece of material |
Phosphor |
|
|
Pressure frame material |
Brass |
|
