Name

Date

Unit

Model

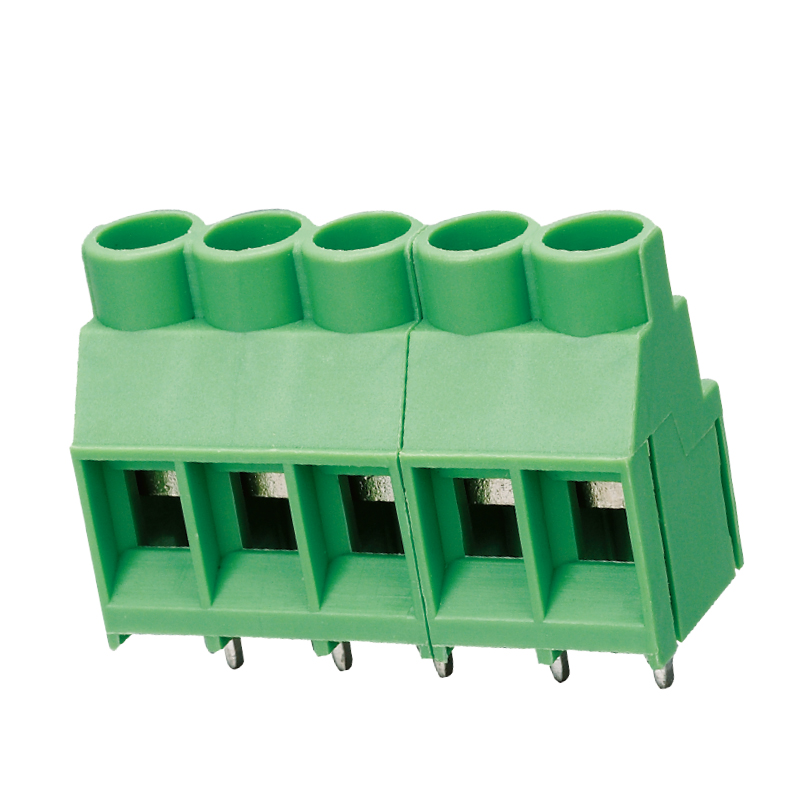

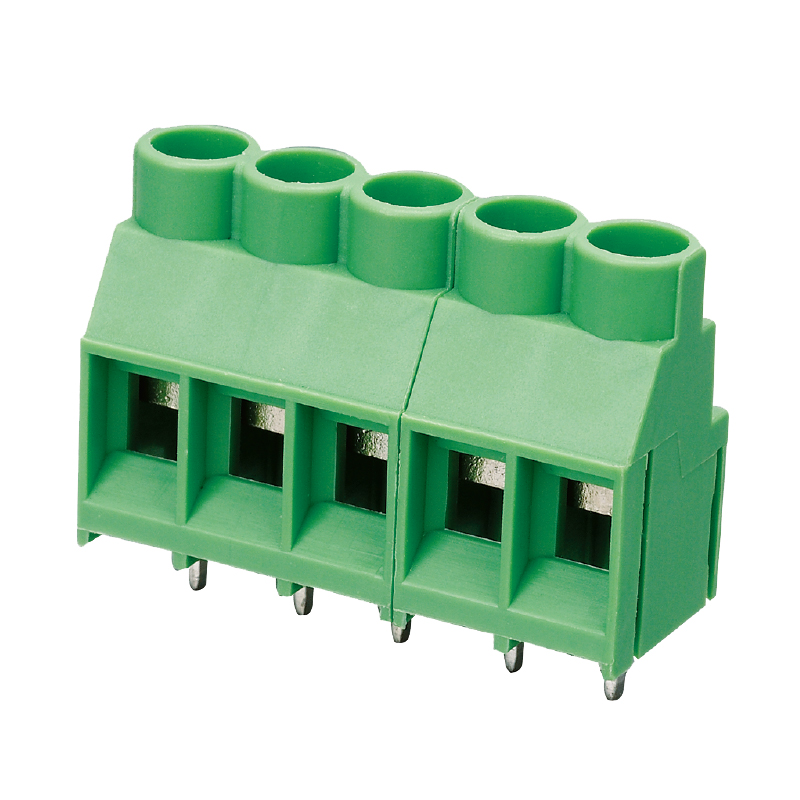

MU4H7.62

Pitch

7.62

mm

Digit

2,3 splicing

Length

L=N*7.62

mm

Width

12.5

mm

Height

21.5

mm

PCB Hole diameter

1.5

mm2

Insulation material group

Ⅰ

Complied standards①

IEC

Rated surge voltage（Ⅲ/3）①

6

KV

Rated surge voltage（Ⅲ/2）①

6

KV

Rated surge voltage（Ⅱ/2）①

6

KV

Rated voltage（Ⅲ/3）①

500

V

Rated voltage（Ⅲ/2）①

630

V

Rated voltage（Ⅱ/2）①

1000

V

Nominal current①

32

A

Complied standards②

UL

Rated voltage②

300

V

Nominal current②

30

A

Min.connection capacity for solid wire

0.2/24

mm2/AWG

Max.connection capacity for solid wire

6/10

mm2/AWG

Min.connection capacity for strand wire

0.2/24

mm2/AWG

Max.connection capacity for strand wire

4/12

mm2/AWG

Line direciton

Parallel to PCB

Strip length

8

mm

Torgue

0.6

N*m

Insulation material

PA66

Inflammability class

UL94 V-0

Conductive piece of material

Brass

Insulation material

Steel

Pressure frame material

Brass
