| Name | Date | Unit |

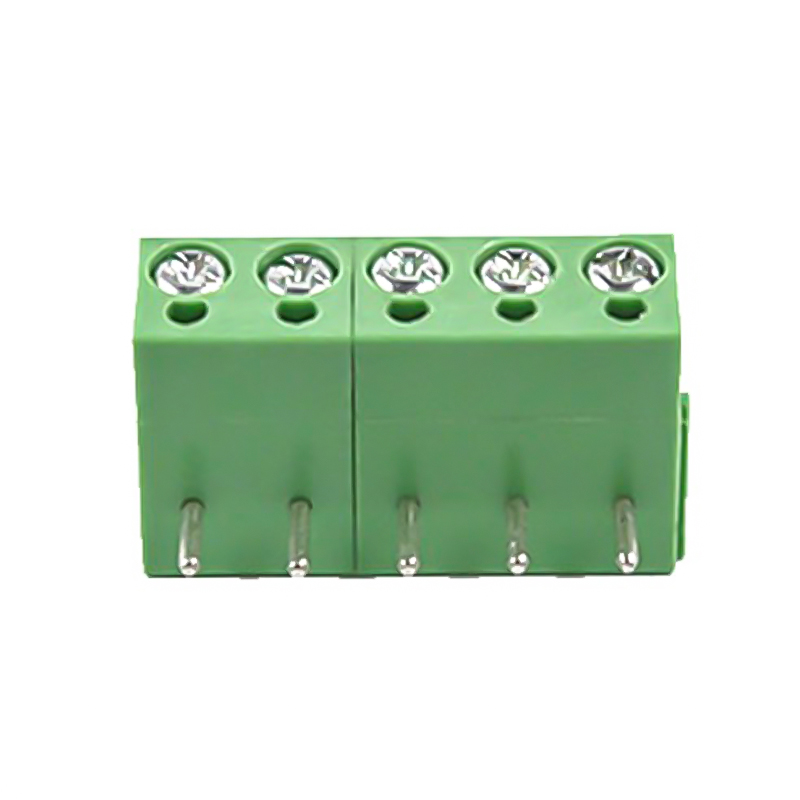

| Model | MU2.5P/V5.0 | |
| Pitch | 5.0 | mm |
| Digit | 2-24P | |
| Length | L=N*P | mm |
| Width | 12.6 | mm |
| Height | 9 | mm |
| PCB Hole diameter | 1.3 | mm2 |
| Insulation material group | Ⅰ | |
| Complied standards① | IEC | |
| Rated surge voltage（Ⅲ/3）① | 4 | KV |
| Rated surge voltage（Ⅲ/2）① | 4 | KV |
| Rated surge voltage（Ⅱ/2）① | 4 | KV |
| Rated voltage（Ⅲ/3）① | 250 | V |
| Rated voltage（Ⅲ/2）① | 320 | V |
| Rated voltage（Ⅱ/2）① | 630 | V |
| Nominal current① | 24 | A |
| Complied standards② | UL | |
| Rated voltage② | 300 | V |
| Nominal current② | 20 | A |
| Min.connection capacity for solid wire | 0.5/20 | mm2/AWG |
| Max.connection capacity for solid wire | 4/10 | mm2/AWG |
| Min.connection capacity for strand wire | 0.5/20 | mm2/AWG |
| Max.connection capacity for strand wire | 2.5/12 | mm2/AWG |
| Line direciton | verticalto PCB | |
| Strip length | 6.5 | mm |
| Torgue | 0.6 | N*m |
| Insulation material | PA66 | |
| Inflammability class | UL94 V-0 | |
| Insulation material | Steel | |
| Inflammability class | Brass |
